Carbon Fiber Square Tubes Overview
Carbon fiber square tubes are lightweight composite structural profiles designed to deliver exceptional stiffness, strength, and dimensional stability. Compared with traditional metal tubing, a square carbon fiber tube provides a significantly higher strength-to-weight ratio while maintaining excellent corrosion resistance and fatigue durability.
Because of these advantages, carbon fiber square tubes are widely used in engineering structures that require both low weight and high mechanical performance. Typical applications include UAV frames, robotics structures, automation equipment, sports equipment, and lightweight industrial systems.
A carbon fiber square tube is typically manufactured using high-strength carbon fiber reinforcements combined with epoxy resin systems. Depending on structural requirements, tubes can be produced through pultruded or roll-wrapped composite manufacturing processes, allowing engineers to optimize fiber orientation and laminate structure for different load conditions.
In addition to standard dimensions, square carbon fiber tubes can be manufactured in custom sizes and wall thicknesses, making them suitable for a wide range of structural and mechanical applications.
Carbon Fiber Square Tube Sizes We Supply
We supply carbon fiber square tubes in a wide range of sizes, from small 3mm profiles used in precision applications to larger 1 inch structural tubes for industrial systems.
3mm Carbon Fiber Square Tube
The 3mm carbon fiber square tube is designed for ultra-lightweight structures and precision assemblies.
It is commonly used in micro-UAV frames, model aircraft, and miniature robotics components where low weight and structural stiffness are essential.
It is commonly used in micro-UAV frames, model aircraft, and miniature robotics components where low weight and structural stiffness are essential.
10mm Carbon Fiber Square Tube
The 10mm carbon fiber square tube is a versatile composite profile used in lightweight frame systems.
Typical applications include UAV structures, camera supports, and robotics frames.
Typical applications include UAV structures, camera supports, and robotics frames.

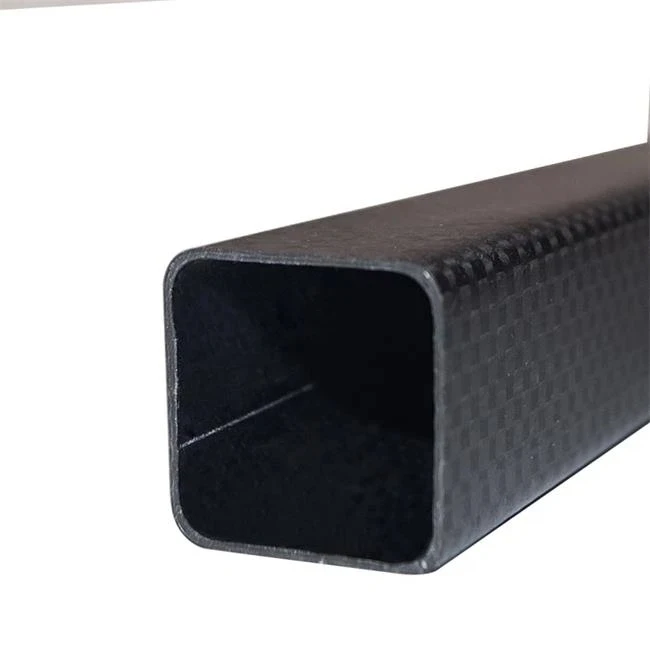

12mm Carbon Fiber Square Tube
The 12mm carbon fiber square tube offers increased rigidity while maintaining a lightweight structure.
It is widely used in robotics assemblies, inspection equipment, and automation structures.
It is widely used in robotics assemblies, inspection equipment, and automation structures.
20mm Carbon Fiber Square Tube
The 20mm carbon fiber square tube is commonly used for structural frames and industrial equipment requiring higher stiffness and load capacity.
1/2 Inch Carbon Fiber Square Tube
The 1/2 inch carbon fiber square tube (12.7 mm) provides a balance between strength and lightweight performance.
It is often used in sports equipment structures and lightweight frame systems.
1 Inch Carbon Fiber Square Tube
The 1 inch carbon fiber square tube is suitable for larger structural applications, offering excellent stiffness while remaining significantly lighter than aluminum tubing.
Mechanical Properties of Carbon Fiber Tube Square
Carbon fiber tube square provides significantly higher stiffness-to-weight ratio than traditional metal square tubes.
| Majetek | Uhlíkové vlákno | Aluminum |
|---|---|---|
| Hustota | 1.6 g/cm³ | 2.7 g/cm³ |
| Tensile Strength | 600–1500 MPa | 310 MPa |
| Elastic Modulus | 70–200 GPa | 69 GPa |
| Poměr pevnosti k hmotnosti | Very High | Mírná |
Manufacturing Methods of Square Carbon Fiber Tubes
Two main manufacturing methods are commonly used for carbon fiber square tubes:

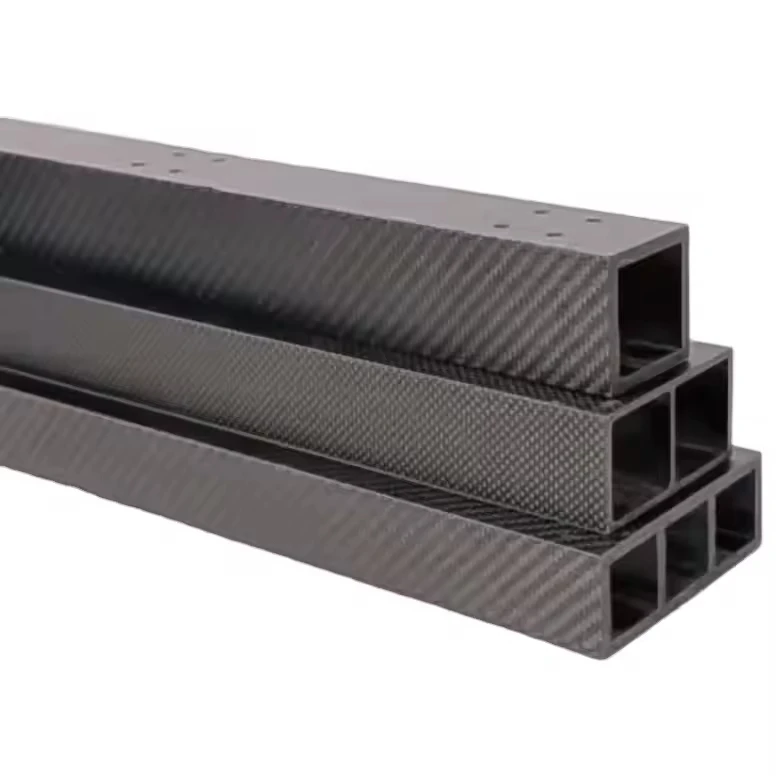

Pultruded Carbon Fiber Square Tubes
Pultruded carbon fiber square tubes are produced through a continuous pultrusion process where carbon fibers are pulled through resin and heated dies.
This method ensures excellent fiber alignment and high longitudinal stiffness.

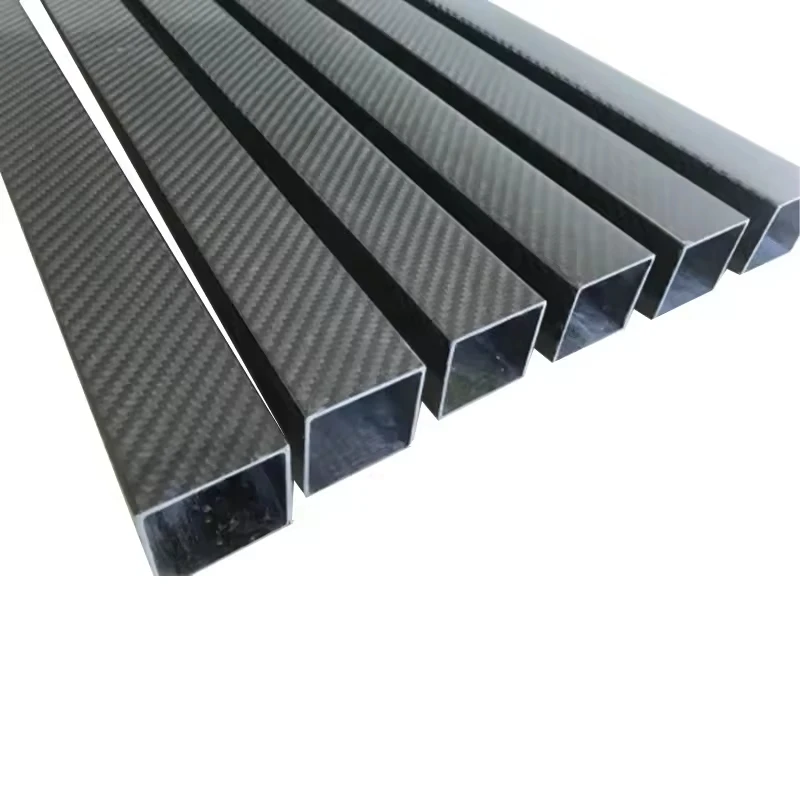

Roll-Wrapped Carbon Fiber Square Tubes
Roll-wrapped square tubes are produced by wrapping carbon fiber prepreg layers around a mandrel and curing under heat and pressure.
This process allows customized layups and higher structural performance.

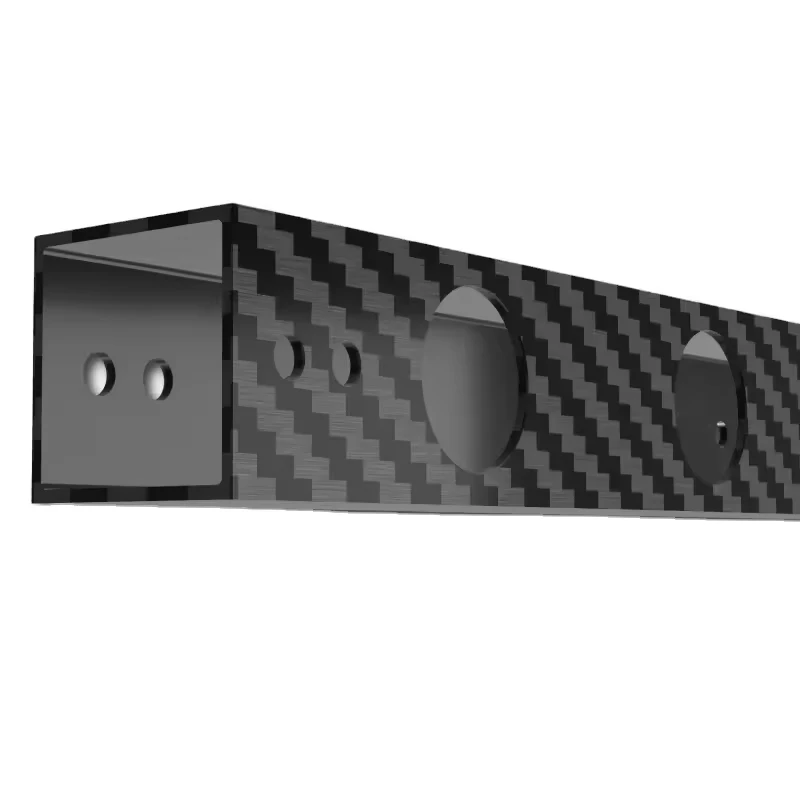

Custom Carbon Fiber Square Tube Options
Carbon fiber square tubes can be customized to meet specific structural and engineering requirements, including dimensions, laminate structures, and surface finishes.
| Customization Option | Popis |
|---|---|
| Square Tube Dimensions | Custom carbon fiber square tube sizes including 3mm, 10mm, 12mm, 20mm and 1 inch square carbon fiber tubes |
| Tloušťka stěny | Adjustable carbon fiber square tube wall thickness for different stiffness and weight requirements |
| Tube Length | Custom carbon fiber square tubing length based on project specifications |
| Fiber Type | Standard modulus or high modulus carbon fiber square tubes for higher stiffness |
| Povrchová úprava | Options include 3K matte, glossy, or UD carbon fiber surface finish |
| Laminate Structure | Custom fiber orientation and laminate design for optimized mechanical performance |
| Precision Machining | Cutting, drilling, or machining of carbon fiber square tubing components |
Carbon Fiber Square Tubes for Different Application
Carbon fiber square tubes are widely used in lightweight structural systems where high stiffness, strength, and dimensional stability are required.
Uhlíkové hřídele šípů, kulečníková tága, hokejové hřídele, lakrosové hřídele a sportovní komponenty z CFRP.
OEM výrobky z uhlíkových vláken a kompozitů vyráběné pro tuhost, snížení hmotnosti a výkonnostní aplikace sportovního vybavení.
Čisticí tyče, inspekční tyče, polní nářadí a teleskopické kompozitní komponenty
Lehké a odolné výrobky z uhlíkových vláken optimalizované pro přenosnost, dosah a provozní spolehlivost venkovního nářadí.
Rámy, ramena, podvozky a lehké konstrukční součásti dronů
Vysokopevnostní struktury z uhlíkových vláken navržené pro optimální poměr pevnosti a hmotnosti v aplikacích bezpilotních letadel a dronů.
Ramena robotů, výložníky, konstrukční články a zakázkové komponenty z CFRP
Přesné kompozitní díly navržené pro tuhost, rozměrovou stabilitu a dynamické vlastnosti v robotických systémech.
Konstrukční výztuhy, interiérové obložení a zakázkové komponenty z CFRP
Řešení z uhlíkových vláken zaměřená na snížení hmotnosti, funkční integraci a odolnost pro aplikace v automobilovém průmyslu a mobilitě.
Čisticí tyče, inspekční tyče, polní nářadí a teleskopické kompozitní komponenty
Lehké a odolné výrobky z uhlíkových vláken optimalizované pro přenosnost, dosah a provozní spolehlivost venkovního nářadí.
Ochranné vložky, kormidla, výztužné panely a nárazuvzdorné kompozitní komponenty.
Díly z uhlíkových vláken a kompozitních materiálů navržené pro ochranu, strukturální integritu a kritické bezpečnostní aplikace.
Engineering Performance Data of Square Carbon Fiber Tubes
Square Carbon Fiber Tubes are engineered composite structures designed to provide superior stiffness and strength while maintaining minimal weight. The mechanical performance depends on fiber grade, laminate structure, and manufacturing process.
Below are typical engineering properties for standard carbon fiber square tubes manufactured using epoxy-based composite systems.
| Majetek | Typical Value | Test Standard |
|---|---|---|
| Hustota | 1.5 – 1.6 g/cm³ | ASTM D792 |
| Tensile Strength | 600 – 1500 MPa | ASTM D3039 |
| Modul v tahu | 70 – 200 GPa | ASTM D3039 |
| Flexural Strength | 500 – 1200 MPa | ASTM D7264 |
| Flexural Modulus | 60 – 150 GPa | ASTM D7264 |
| Compressive Strength | 400 – 900 MPa | ASTM D6641 |
| Interlaminar Shear Strength | 40 – 80 MPa | ASTM D2344 |
| Coefficient of Thermal Expansion | ~0 to 2 ×10⁻⁶ /K | ASTM E831 |
| Operating Temperature | -50°C to 120°C | Material dependent |
Note: Mechanical properties vary depending on fiber type (T700, T800, high modulus), laminate orientation, and manufacturing process.
Strength-to-Weight Advantage
Compared with metal square tubing, carbon fiber composite structures provide significantly higher stiffness while maintaining much lower weight.
For example:
Carbon fiber density: ≈1.6 g/cm³
Aluminum density: ≈2.7 g/cm³
This means carbon fiber square tubes can reduce structural weight by 30–50% while maintaining comparable or higher stiffness.
Structural Design Flexibility
Unlike isotropic materials such as metals, carbon fiber composites allow engineers to tailor mechanical performance through fiber orientation and laminate design.
Common laminate structures include:
0° fibers for axial stiffness
±45° layers for torsional resistance
90° layers for transverse stability
This design flexibility allows carbon fiber square tubes to be optimized for specific load conditions and structural requirements.
