Carbon Fiber Rectangular Tube Overview
A carbon fiber rectangular tube is a structural composite profile manufactured using high-strength carbon fiber reinforcements combined with epoxy resin systems. The rectangular geometry provides excellent bending stiffness and improved structural stability compared with round tubing.
Because of the flat mounting surfaces and high rigidity, rectangular carbon fiber tubes are commonly used in frame systems, mechanical assemblies, and lightweight structural applications.
Compared with metal rectangular tubing, carbon fiber rectangular tubes offer several key advantages:
significantly higher strength-to-weight ratio
excellent corrosion resistance
outstanding fatigue durability
low thermal expansion
long service life in demanding environments
These characteristics make rectangular carbon fiber tubes suitable for advanced engineering applications across aerospace, robotics, industrial automation, and performance equipment industries.
Poptávka nyníCarbon Fiber Rectangular Tube Types We Supply
We supply several structural configurations of carbon fiber rectangular tubes to meet different engineering and industrial requirements.

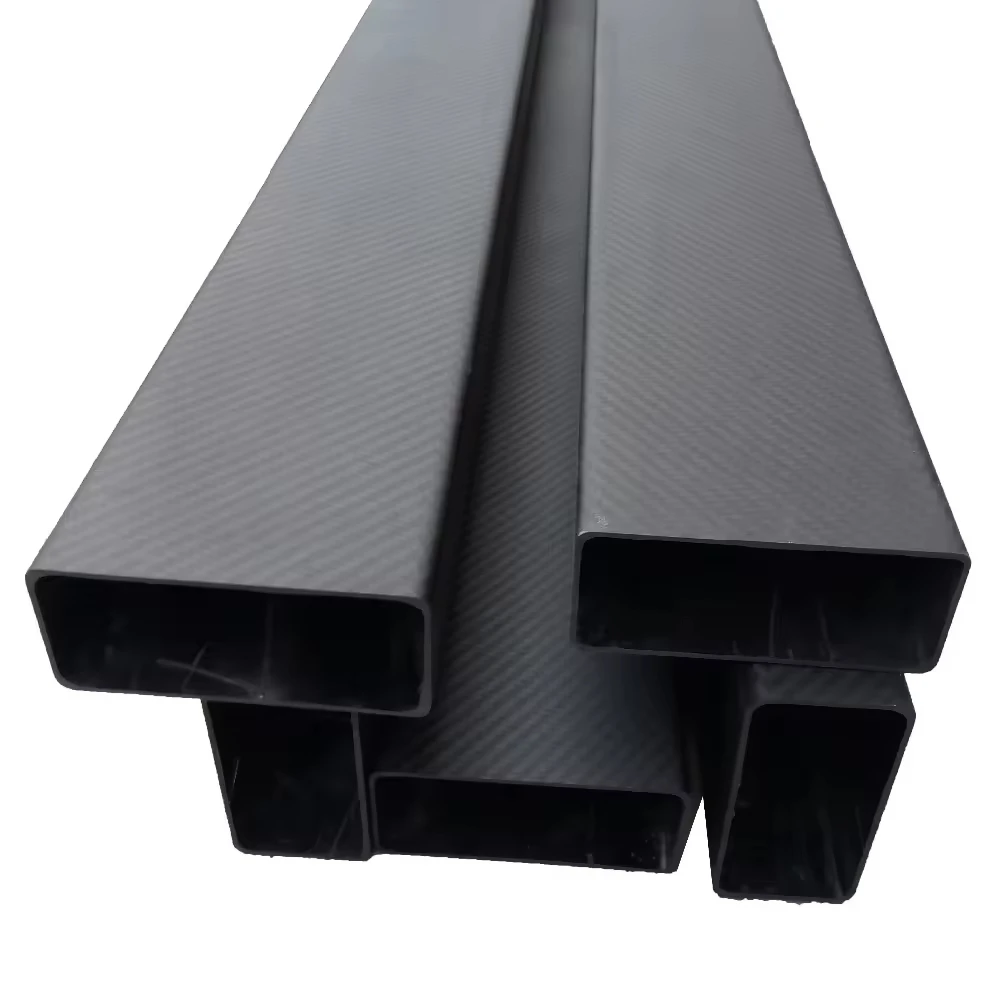

Hollow Rectangular Carbon Fiber Tube
The hollow rectangular carbon fiber tube is the most common structural configuration. It provides excellent stiffness and lightweight performance, making it suitable for frame structures, support systems, and engineering assemblies.
This type of rectangular carbon fiber tube is widely used in UAV structures, robotics frames, and lightweight mechanical systems.

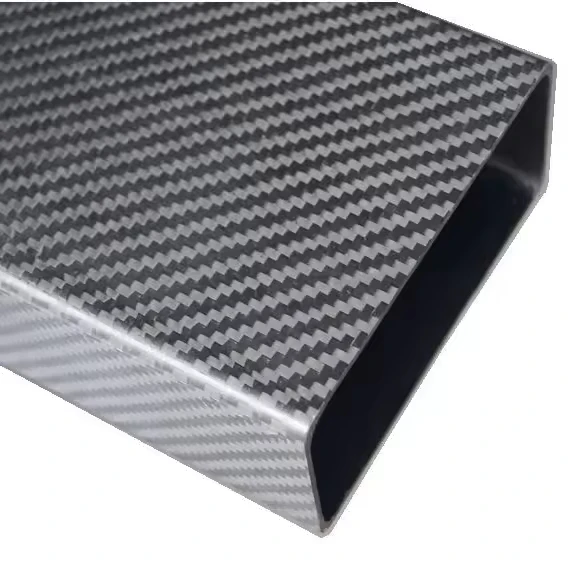

Large Carbon Fiber Rectangular Tube
A large carbon fiber rectangular tube is designed for structural applications requiring higher bending stiffness and load capacity.
These tubes are commonly used in industrial equipment frames, automation structures, and engineering systems where both structural rigidity and weight reduction are important.

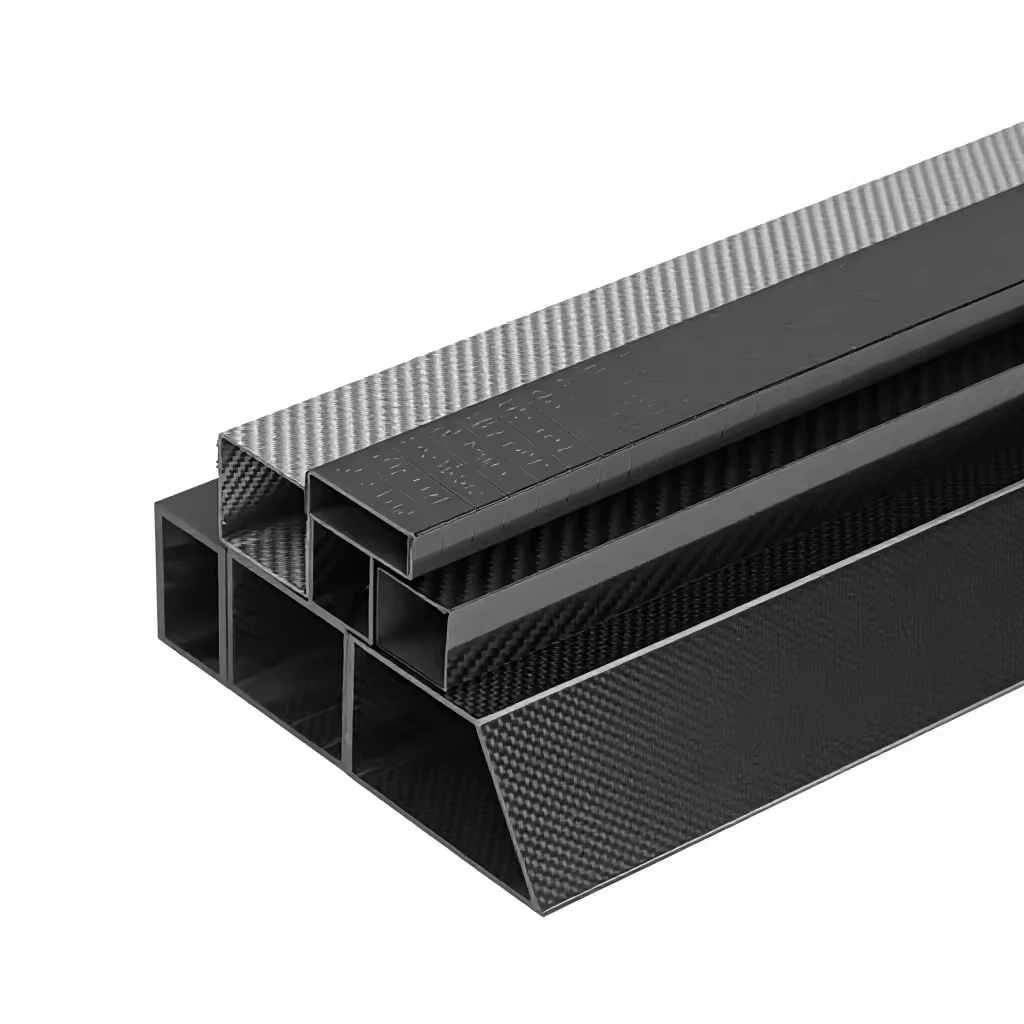

Rectangular Multi-Cell Carbon Fiber Tube
The rectangular multi-cell carbon fiber tube features internal reinforcement chambers that improve structural stiffness and load distribution.
This configuration is often used in advanced engineering structures where higher rigidity and improved structural efficiency are required.
Mechanical Properties of Carbon Fiber Rectangular Tube
Carbon fiber rectangular tube provides excellent mechanical performance compared with traditional metal tubing.
| Majetek | Carbon Fiber Rectangular Tube | Aluminum Tube |
|---|---|---|
| Hustota | ~1.6 g/cm³ | ~2.7 g/cm³ |
| Tensile Strength | 600-1500 MPa | ~310 MPa |
| Elastic Modulus | 70-200 GPa | ~69 GPa |
| Poměr pevnosti k hmotnosti | Very High | Mírná |
Due to their high stiffness and lightweight structure, carbon fiber rectangular tubes are widely used in applications where structural performance and weight reduction are both critical.
Manufacturing Methods of Rectangular Carbon Fiber Tube
The rectangular carbon fiber tube manufacturing process typically involves advanced composite manufacturing technologies to achieve precise dimensions and high structural strength.
Pultruded Carbon Fiber Rectangular Tubes
Pultruded rectangular carbon fiber tubes are manufactured using a continuous pultrusion process where carbon fibers are pulled through a resin bath and heated die.
This method provides excellent fiber alignment and high axial stiffness.

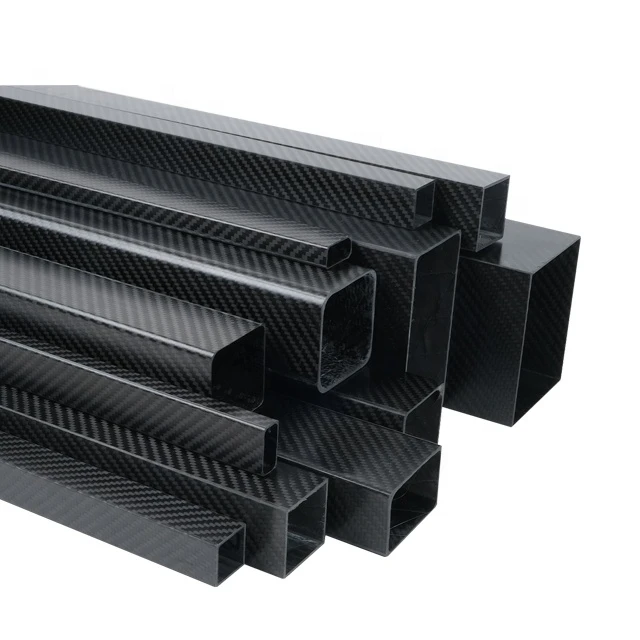

Roll-Wrapped Carbon Fiber Rectangular Tubes
Roll-wrapped tubes are produced by wrapping carbon fiber prepreg layers around a mandrel before curing under controlled temperature and pressure.
This process allows customized laminate structures and optimized mechanical performance.
Carbon Fiber Rectangular Tubes for Different Applications
Carbon fiber rectangular tubes are widely used in lightweight structural systems where high stiffness, strength, and dimensional stability are required.
Uhlíkové hřídele šípů, kulečníková tága, hokejové hřídele, lakrosové hřídele a sportovní komponenty z CFRP.
OEM výrobky z uhlíkových vláken a kompozitů vyráběné pro tuhost, snížení hmotnosti a výkonnostní aplikace sportovního vybavení.
Čisticí tyče, inspekční tyče, polní nářadí a teleskopické kompozitní komponenty
Lehké a odolné výrobky z uhlíkových vláken optimalizované pro přenosnost, dosah a provozní spolehlivost venkovního nářadí.
Rámy, ramena, podvozky a lehké konstrukční součásti dronů
Vysokopevnostní struktury z uhlíkových vláken navržené pro optimální poměr pevnosti a hmotnosti v aplikacích bezpilotních letadel a dronů.
Ramena robotů, výložníky, konstrukční články a zakázkové komponenty z CFRP
Přesné kompozitní díly navržené pro tuhost, rozměrovou stabilitu a dynamické vlastnosti v robotických systémech.
Konstrukční výztuhy, interiérové obložení a zakázkové komponenty z CFRP
Řešení z uhlíkových vláken zaměřená na snížení hmotnosti, funkční integraci a odolnost pro aplikace v automobilovém průmyslu a mobilitě.
Čisticí tyče, inspekční tyče, polní nářadí a teleskopické kompozitní komponenty
Lehké a odolné výrobky z uhlíkových vláken optimalizované pro přenosnost, dosah a provozní spolehlivost venkovního nářadí.
Ochranné vložky, kormidla, výztužné panely a nárazuvzdorné kompozitní komponenty.
Díly z uhlíkových vláken a kompozitních materiálů navržené pro ochranu, strukturální integritu a kritické bezpečnostní aplikace.

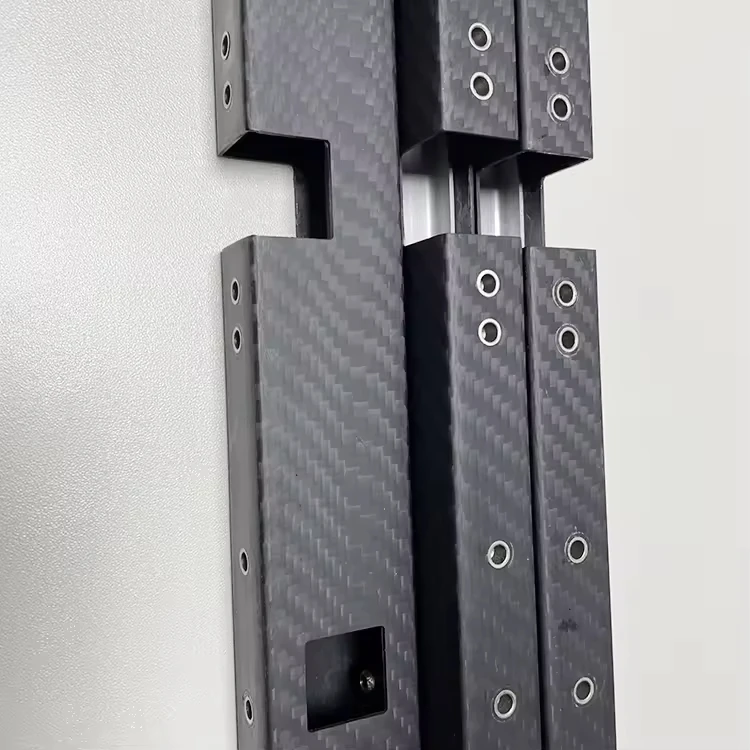

Custom Carbon Fiber Rectangular Tubes
Custom manufacturing is available for carbon fiber rectangular tubes to meet specific engineering requirements.
| Custom Option | Popis |
|---|---|
| Dimensions | Custom rectangular tube dimensions |
| Tloušťka stěny | Adjustable wall thickness for stiffness and weight |
| Orientace vláken | Tailored laminate structure |
| Povrchová úprava | Matte, glossy, or UD carbon fiber finish |
| Machining | Precision cutting, drilling, and machining |
Custom rectangular carbon fiber tubes can be produced according to project drawings or engineering specifications.
Engineering Performance Data of Rectangular Carbon Fiber Tubes
| Majetek | Typical Value |
|---|---|
| Hustota | 1.5-1.6 g/cm³ |
| Tensile Strength | 600-1500 MPa |
| Flexural Strength | 500-1200 MPa |
| Compressive Strength | 400-900 MPa |
| Operating Temperature | -50°C to 120°C |
These properties make carbon fiber rectangular tubes suitable for demanding structural applications where lightweight design and mechanical reliability are essential.

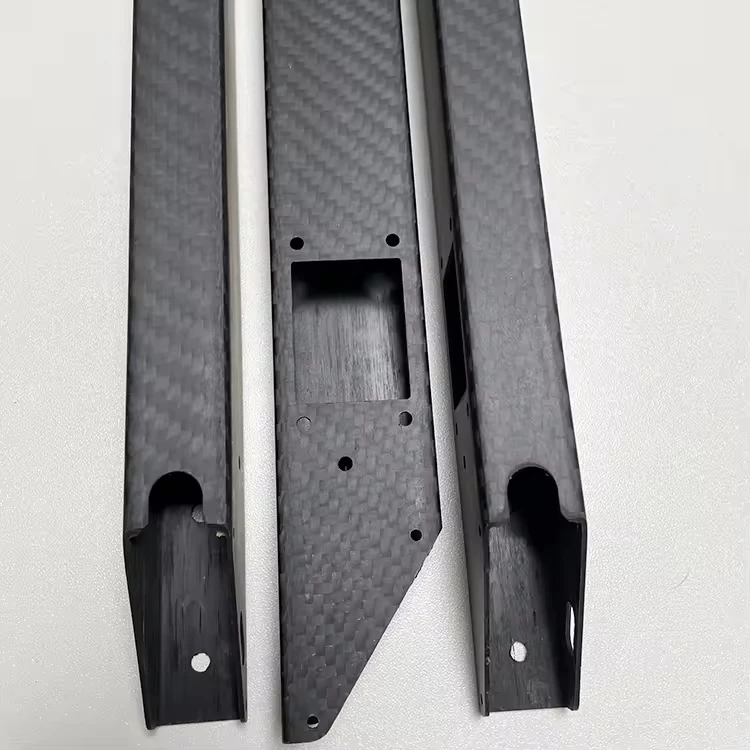

Carbon Fiber Rectangular Tube Manufacturer and Supplier
As a professional carbon fiber rectangular tube manufacturer, we supply high-quality composite structural tubing for industrial and engineering applications.
Our manufacturing capabilities allow us to support customers requiring reliable supply and consistent composite quality.
We operate as a carbon fiber rectangular tube supplier and factory, providing OEM manufacturing and custom composite tube solutions for global customers.
Our services include:
- custom rectangular carbon fiber tube production
- OEM composite tube manufacturing
- carbon fiber rectangular tube wholesale supply

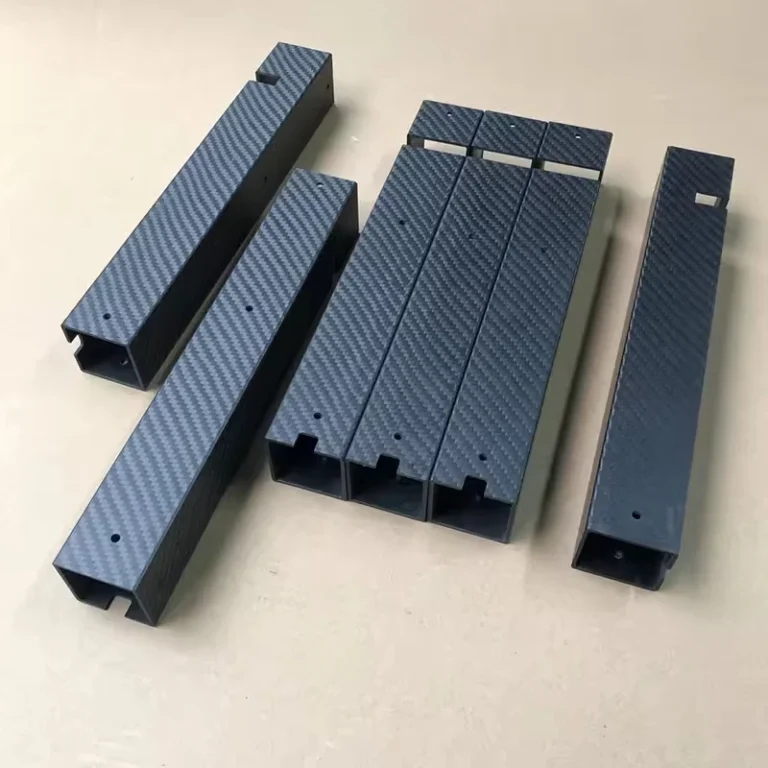

Why Choose Our Carbon Fiber Rectangular Tubes
High-Quality Carbon Fiber Materials
Our carbon fiber rectangular tubes are manufactured using high-strength carbon fiber reinforcements and reliable resin systems to ensure excellent mechanical performance.
Precision Composite Manufacturing
Advanced production equipment and strict quality control help maintain accurate dimensions and consistent composite quality.
Custom Engineering Capability
We support customized rectangular carbon fiber tube solutions including dimensions, laminate structures, and machining options.
Reliable OEM Manufacturing Partner
As an experienced carbon fiber rectangular tube manufacturer and supplier, we provide stable production capacity and reliable supply for industrial customers worldwide.
Kompozitní výrobky
Nabízíme kompletní portfolio kompozitních výrobků:
Často kladené otázky
What is a carbon fiber rectangular tube?
A carbon fiber rectangular tube is a lightweight composite structural profile made from carbon fiber reinforcement and resin systems. It provides high stiffness and strength while maintaining low weight.
What are carbon fiber rectangular tubes used for?
Carbon fiber rectangular tubes are commonly used in UAV structures, robotics systems, industrial equipment frames, and engineering assemblies where lightweight and structural strength are required.
Who manufactures carbon fiber rectangular tubes?
Carbon fiber rectangular tubes are typically manufactured by specialized composite manufacturers that produce advanced carbon fiber structural components.
Can carbon fiber rectangular tubes be customized?
Yes. Custom carbon fiber rectangular tubes can be manufactured according to specific dimensions, laminate structures, and engineering requirements.
