Why Customers Choose Us :
- Manufacturer-Direct Control
- Engineering Support
- Consistent Quality
- Reliable Lead Time

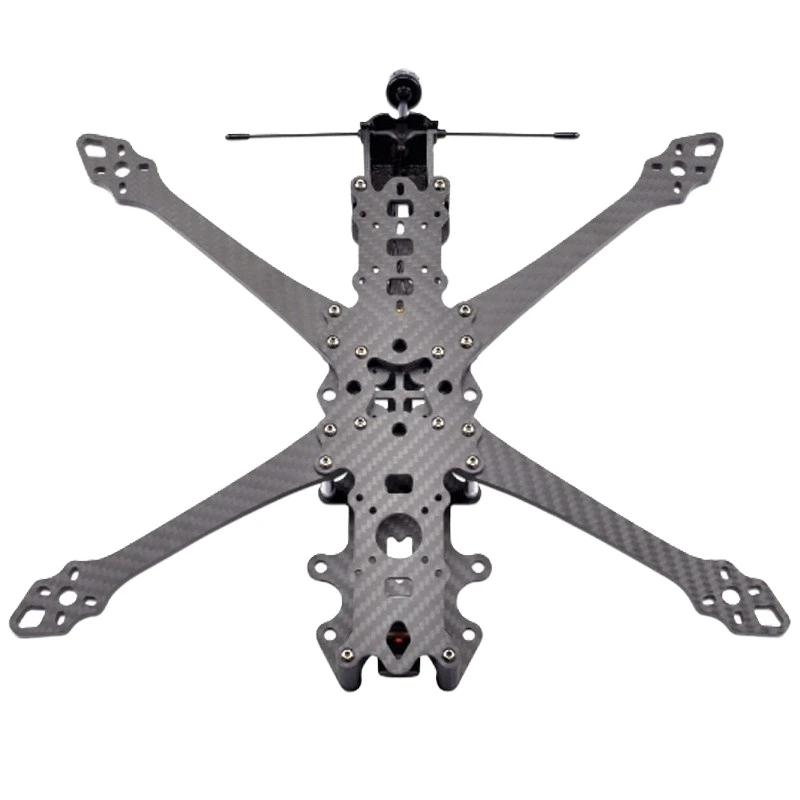

Carbon Fiber Drone Frames Overview
A carbon fiber drone frame needs to be light, stiff, and reliable during flight, impact, vibration, and repeated assembly. For drone brands, UAV developers, repair suppliers, and frame kit distributors, the frame is not only a structural part — it directly affects flight stability, payload capacity, battery efficiency, and product quality.
We support OEM and custom production for carbon fiber drone frames in different sizes, layouts, thicknesses, and surface finishes. Whether you need an FPV racing carbon fiber drone frame, a large carbon fiber drone frame, a foldable UAV frame, or carbon fiber frame kits for batch supply, we can help you produce parts with consistent quality and stable dimensions.
Carbon Fiber Drone Frame Types We Supply
We manufacture different types of carbon fiber frames for drones, from small FPV models to large UAV structures.

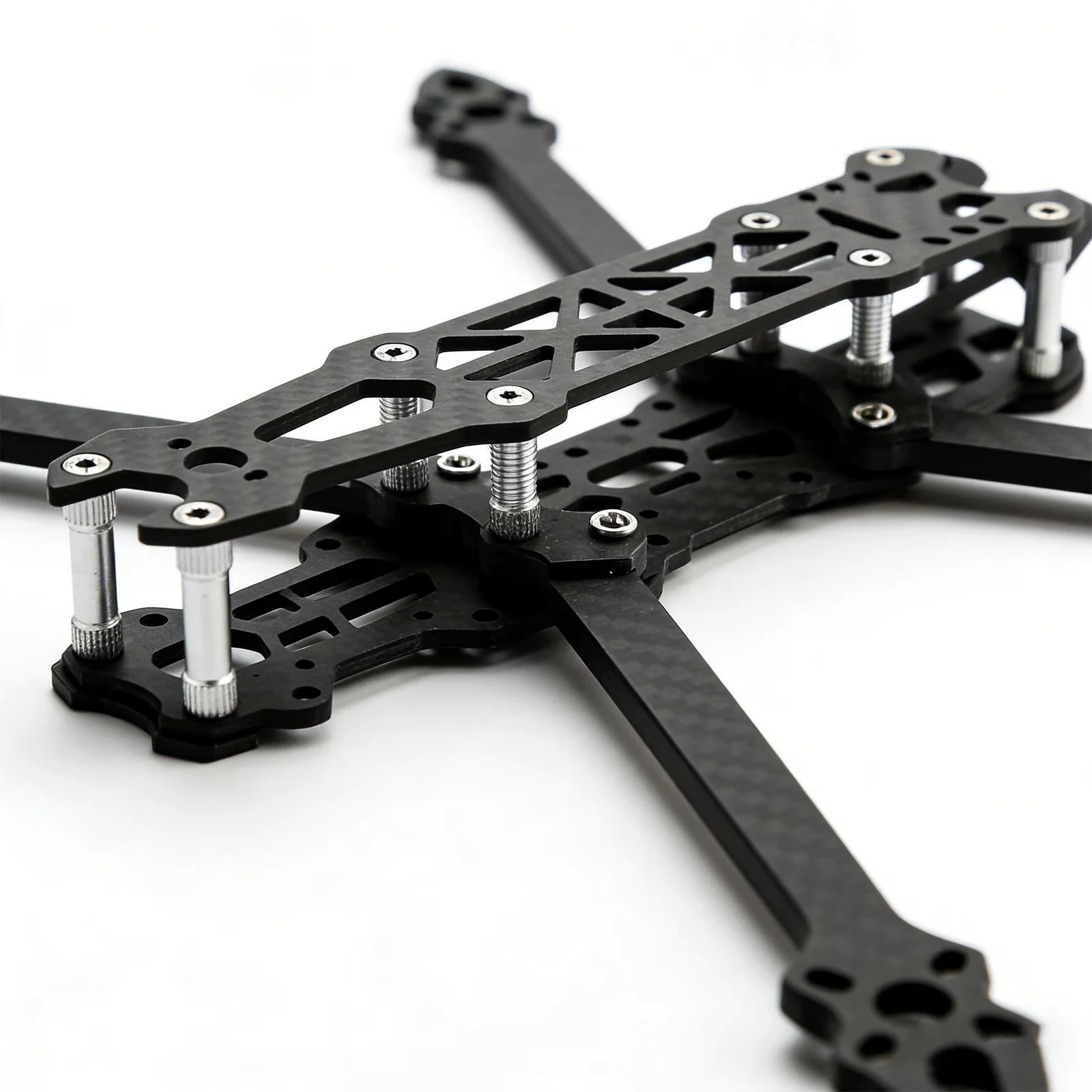

FPV Racing Carbon Fiber Drone Frame
FPV racing drones need a frame with low weight, high stiffness, and good crash resistance. We can produce carbon fiber FPV drone frames, arms, top plates, bottom plates, camera plates, and motor mounting plates based on your design.
Common options include 3K twill surface, matte finish, CNC-cut carbon fiber plates, chamfered edges, countersunk holes, and customized arm thickness.

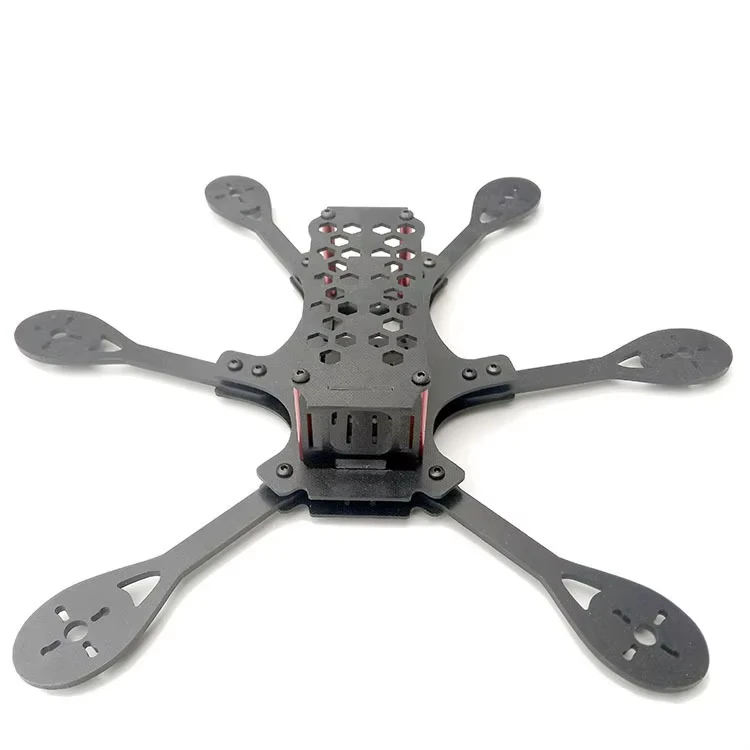

Large Carbon Fiber Drone Frame
Large drone frames require stronger structural design than small FPV frames. We can manufacture large carbon fiber drone frames using carbon fiber plates, tubes, cross bars, and reinforced mounting sections for better load support.
These frames are suitable for mapping drones, inspection drones, agricultural drones, research UAVs, and industrial platforms.

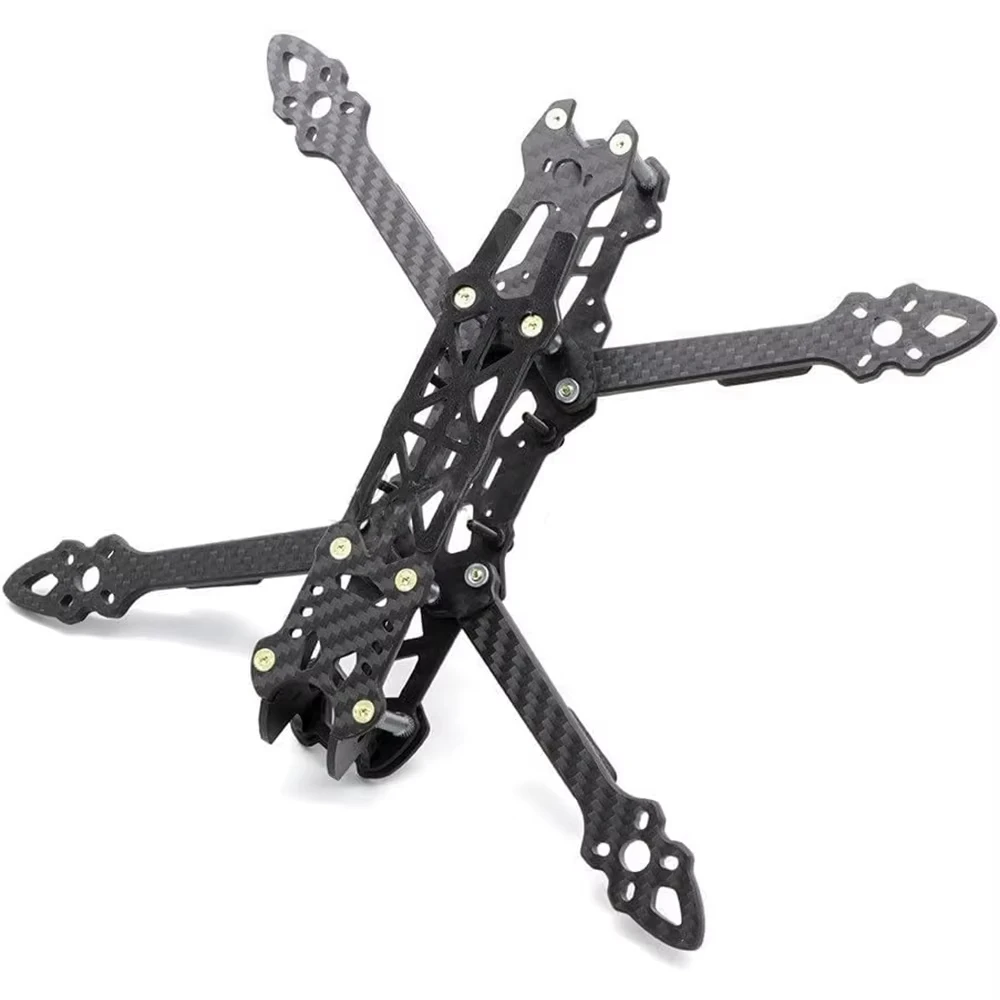

Micro Carbon Fiber Drone Frame
Micro drone frames require small, lightweight, and accurate carbon fiber parts. We can produce thin carbon fiber plates and small CNC-cut components for compact drone structures, test platforms, and lightweight frame kits.

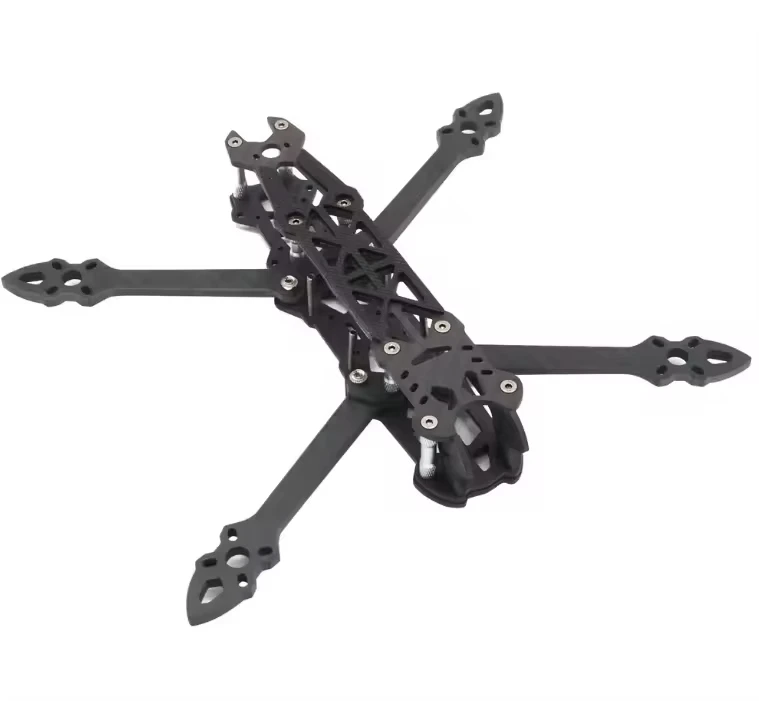

Why Use Carbon Fiber for Drone Frames?
Carbon fiber is widely used in drone frames because it gives a strong balance between weight, stiffness, and durability. Compared with plastic or wood, carbon fiber is better suited for high-performance drone structures that need stable flight and repeatable assembly.
Main benefits include:
- Lower weight for better flight efficiency
- High stiffness for stable motor and propeller alignment
- Good fatigue resistance during repeated use
- Better dimensional stability than plastic parts
- Stronger structure for racing, industrial, and heavy-lift drones
- Clean appearance for premium drone frame kits
- Easy customization through CNC cutting and composite layup design
Carbon Fiber Frame For Drone Applications
Our carbon fiber drone frame parts are used in different drone and UAV projects.
FPV Racing Drones
Lightweight carbon fiber frames help improve acceleration, handling, and impact resistance for racing and freestyle drones.
Aerial Photography Drones
Stiff carbon fiber frames help reduce vibration and support stable camera mounting.
Inspection Drones
Industrial inspection drones need strong and lightweight structures for outdoor use, repeated flights, and mounted equipment.
Mapping and Surveying UAVs
Large carbon fiber drone frames can support flight stability, sensor mounting, and longer working time.
Heavy-Lift Drones
Carbon fiber tube and plate structures are suitable for payload drones that require strong arms and reinforced connection points.
Drone Frame Kits
We can supply carbon fiber frame kits for OEM brands, wholesalers, and drone parts distributors.
Drone Frame Carbon Fiber Typical Sizes and Custom Options
Drone frame carbon fiber sizes depend on drone type, propeller size, payload, motor layout, and frame design. The table below shows common size directions for production reference.
| Frame Type | Common Size Keywords | Typical Use | Custom Options |
|---|---|---|---|
| Micro carbon fiber drone frame | 75mm and small sizes | Indoor drones, lightweight FPV drones, test models | Thin plates, small CNC parts, custom hole positions |
| FPV racing drone frame | 200mm–250mm | Racing drones, freestyle drones, FPV kits | 3K carbon plates, arms, top plates, bottom plates |
| Medium RC drone frame | 400mm–450mm | RC drones, camera drones, training platforms | Plate frame, tube support, custom mounting holes |
| 550mm drone frame kit | 550mm | Multi-rotor kits, aerial platforms | Carbon plates, arms, support bars, kit packaging |
| Large carbon fiber drone frame | 650mm–700mm | Mapping, inspection, industrial UAVs | Tube frame, reinforced plates, cross bar support |
| Heavy-lift drone frame | Custom size | Payload drones, industrial UAV systems | Thicker plates, stronger tubes, reinforced mounting points |

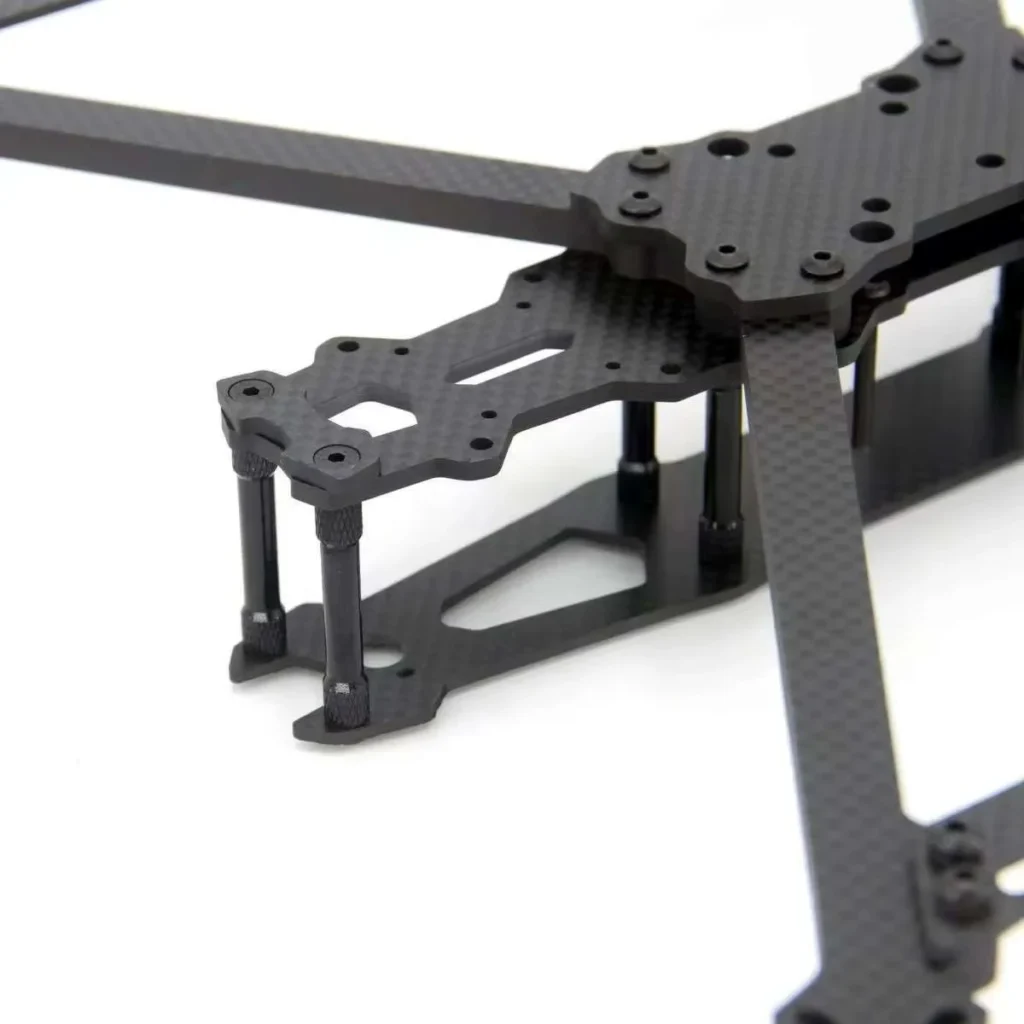

Custom Drone Carbon Fiber Frame
If standard drone frames cannot meet your requirements, we can help produce custom carbon fiber drone frames for your project.
We can customize:
- Frame size and layout
- Plate thickness and laminate structure
- Arm shape and mounting hole positions
- Motor mount design
- Battery plate and camera mount
- Cross bar and front support bar
- Foldable arm structure
- Tube diameter and tube length
- Surface finish and logo marking
- Kit packaging for wholesale orders
Custom production is suitable for drone brands, UAV developers, FPV frame suppliers, repair part distributors, and industrial drone manufacturers.

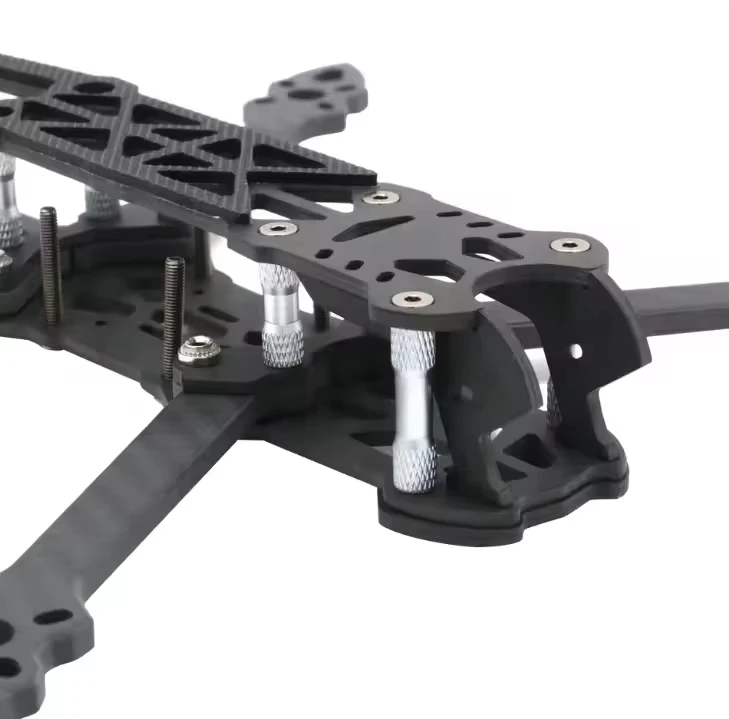

Carbon Fiber Drone Frame Manufacturing Process
Our carbon fiber drone frame production focuses on material selection, machining accuracy, and repeatable quality.
- Design Review
We check your drawing, sample, or frame concept to confirm material, thickness, hole positions, tolerance, and assembly requirements. - Material Preparation
Carbon fiber plates or tubes are selected based on strength, surface, thickness, and application needs. - CNC Cutting and Machining
Frame plates, arms, support bars, slots, and holes are machined according to the approved drawings. - Edge Finishing
We can provide chamfering, deburring, countersinking, and edge treatment to improve assembly safety and appearance. - Inspection
Key dimensions, hole positions, surface quality, and batch consistency are checked before packing. - Packing and Delivery
Parts can be packed as individual components, complete frame kits, or OEM packaging based on your supply needs.
Information Needed for Carbon Fiber Drone Frame Quotation
To quote your carbon fiber drone frame project accurately, please send the following information:
| Information | Example |
|---|---|
| Frame type | FPV racing frame, large UAV frame, foldable frame, heavy-lift frame |
| Size | 220mm, 250mm, 450mm, 550mm, 700mm, or custom |
| Drawing | DXF, STEP, PDF, or sample photo |
| Material | Carbon fiber plate, tube, or hybrid structure |
| Thickness | 2mm, 3mm, 4mm, 5mm, or custom |
| Surface finish | Matte, glossy, 3K twill, plain weave, UD |
| Processing | Cutting, drilling, chamfering, countersinking |
| Quantity | Prototype, small batch, or bulk order |
| Packaging | Bulk packing or OEM kit packaging |
Carbon Fiber Drone Frame vs Plastic and Wood
Different materials can be used for drone frames, but they are not suitable for the same level of performance.
| Material | Main Advantage | Main Limitation | Best Used For | Buyer Suggestion |
|---|---|---|---|---|
| Carbon Fiber | Lightweight structure with strong rigidity for stable flight | Higher material and machining cost than plastic or wood | FPV racing drones, UAV frames, inspection drones, heavy-lift drone frames | Best choice when flight stability, frame strength, and long-term performance are important |
| Plastic | Low-cost molding and easy mass production | Can deform, crack, or lose stiffness under load, heat, or impact | Toy drones, entry-level drones, low-cost consumer models | Suitable for low-cost products, but not ideal for professional or OEM drone frame projects |
| Wood | Easy to cut and useful for simple testing | Sensitive to moisture, impact, and long-term dimensional changes | DIY prototypes, temporary test frames, educational projects | Useful for early testing, but not suitable for stable commercial drone frame supply |
| Aluminum | Good machining accuracy and strong mounting areas | Heavier than carbon fiber and may reduce flight efficiency | Brackets, connectors, motor mounts, and some industrial support parts | Can be used with carbon fiber in hybrid frame designs |

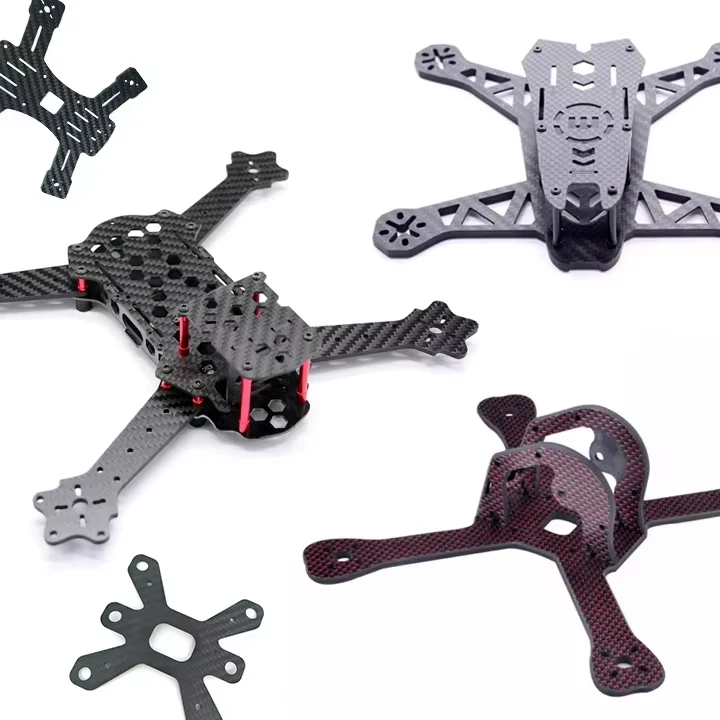

Why Choose LongHe Composite?
OEM Carbon Fiber Manufacturing Experience
We manufacture carbon fiber parts for custom industrial and commercial applications, not only simple standard products.
Custom Plate and Tube Capability
We can supply both carbon fiber plates and carbon fiber tubes, which makes us suitable for plate frames, tube frames, and hybrid drone structures.
Support for Prototypes and Batch Orders
We support prototype testing, small batch orders, and stable OEM production for long-term projects.
B2B Supply Focus
We work with drone brands, frame kit sellers, UAV developers, wholesalers, and industrial customers who need consistent quality and reliable communication.
Case Study: Custom Carbon Fiber Frame Parts for an Industrial UAV Project
A UAV equipment supplier needed custom carbon fiber frame parts for a medium-size industrial drone used in outdoor inspection work. The original aluminum support structure was strong enough, but it added unnecessary weight and reduced flight efficiency.
The customer provided 2D drawings for the main plates, arm supports, and mounting brackets. We reviewed the hole positions, plate thickness, edge finishing requirements, and assembly method before production.
For this project, we supplied CNC-machined carbon fiber plates with clean cutting edges, accurate mounting holes, and a matte 3K carbon fiber surface. The parts were produced as a small batch first for assembly testing, then adjusted based on the customer’s feedback before repeat production.
This helped the customer reduce frame weight, improve structural stiffness, and keep the drone frame easier to assemble in future batches.
Project Details
| Item | Requirement |
|---|---|
| Application | Industrial UAV frame parts |
| Material | 3K carbon fiber plate |
| Process | CNC cutting, drilling, edge finishing |
| Parts Supplied | Main frame plates, arm supports, mounting brackets |
| Order Type | Prototype testing and small batch production |
| Key Focus | Lower weight, accurate holes, stable batch quality |
What We Supported
- Drawing review before production
- Carbon fiber plate thickness selection
- CNC machining for custom frame parts
- Edge finishing for safer assembly
- Small batch production before repeat orders
- Dimensional inspection before shipment
Carbon Fiber Drone Frame FAQ
Is carbon fiber good for drones?
Yes. Carbon fiber is a very good material for drone frames because it is lightweight, stiff, and strong. It helps reduce frame weight while keeping the structure stable during flight, vibration, and repeated assembly.
What is the best material for a drone frame?
For performance drones, FPV racing drones, and industrial UAVs, carbon fiber is one of the best materials for drone frames. It offers a better strength-to-weight ratio than plastic, wood, or many metal frame options.
How thick are carbon fiber drone frames?
Carbon fiber drone frame thickness depends on the drone size and application. Small FPV drone frames often use thinner plates, while larger UAV and heavy-lift drone frames may need thicker carbon fiber plates or reinforced tube structures.
Which drone frame is best?
The best drone frame depends on the drone’s purpose. FPV racing drones need a light and crash-resistant carbon fiber frame, while aerial photography, inspection, and heavy-lift drones need a stiffer and stronger carbon fiber structure.
What material is used in FPV drone frames?
Most high-performance FPV drone frames use carbon fiber plates. Carbon fiber gives FPV frames the stiffness, low weight, and impact resistance needed for racing, freestyle flying, and repeated outdoor use.
