Carbon Fiber Channels Overview

Carbon fiber channels are structural composite profiles manufactured by forming carbon fiber reinforcements into U- or C-shaped geometries and curing them with controlled resin systems.
These profiles combine low weight with high bending stiffness and dimensional stability, making them suitable for load-bearing and reinforcement applications where structural efficiency is critical.

Unlike flat carbon fiber sheets or decorative composite trims, carbon fiber channels are engineered structural components designed to resist bending, deflection, and localized loads.
By leveraging the open channel geometry, these profiles achieve an effective balance between stiffness, accessibility, and integration flexibility. Fiber orientation, laminate thickness, and layup strategy can be adjusted to optimize performance for specific loading directions and assembly requirements.

Carbon fiber channel profiles are typically produced using epoxy-based resin systems to achieve reliable mechanical properties and long-term durability. When properly designed, they offer excellent fatigue resistance, corrosion resistance, and vibration damping compared to traditional aluminum or steel channels, particularly in weight-sensitive structures.

For industrial and OEM applications, consistent performance depends on controlled manufacturing parameters such as wall thickness uniformity, fiber distribution, and curing stability.
Material selection, layup design, and process control play a critical role in ensuring repeatable strength, dimensional accuracy, and surface quality across production batches.

INQUIRY NOW INQUIRY NOW

Carbon Fiber Channel Shapes We Supply

Carbon fiber channels are available in multiple structural configurations to meet different load and mounting requirements.

Get Your Custom Solution
carbon fiber u channels

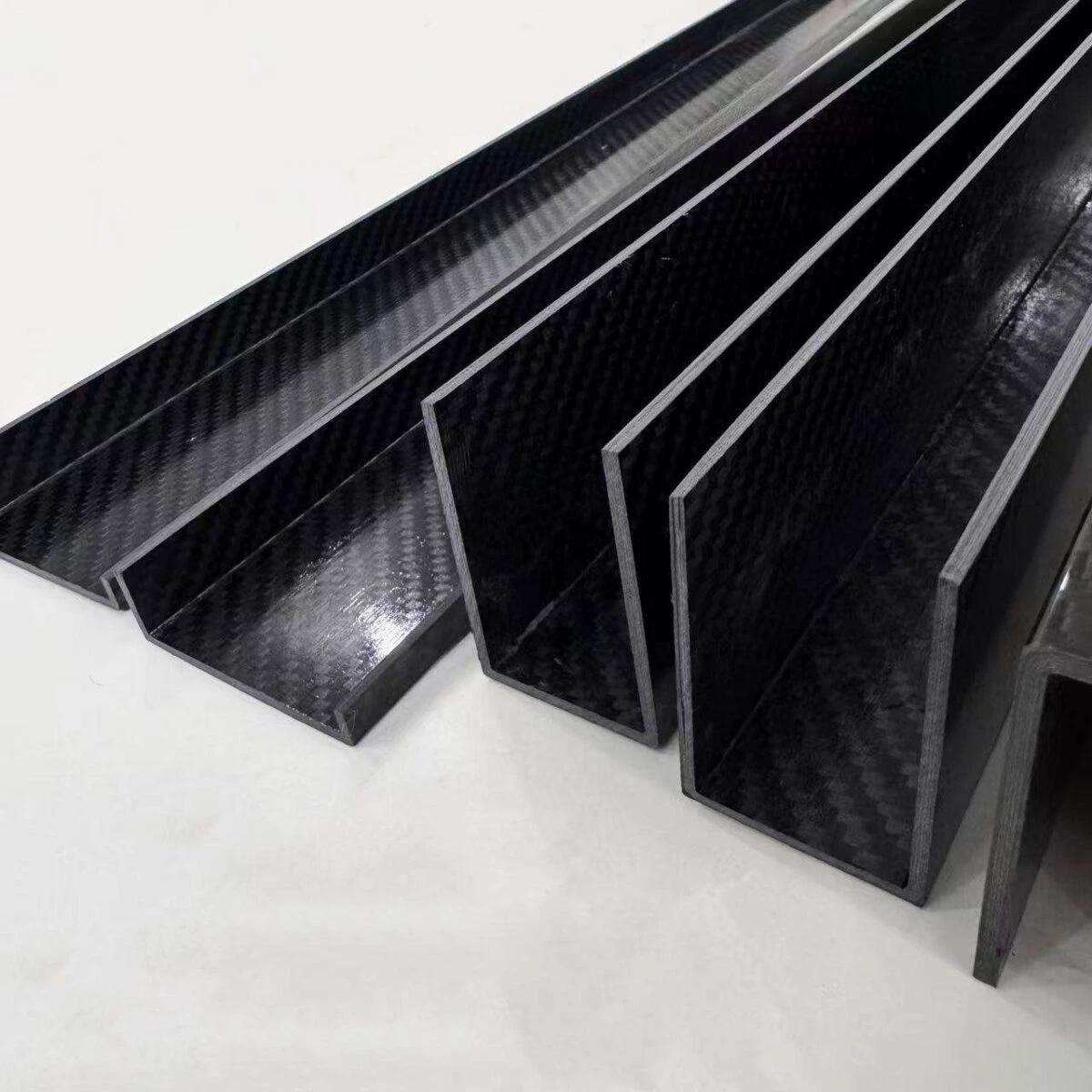

Carbon Fiber U Channel

Carbon fiber U channels provide efficient bending stiffness with open-sided geometry, making them suitable for reinforcement rails, lightweight frames, and support structures that require easy integration.

carbon fiber c channels

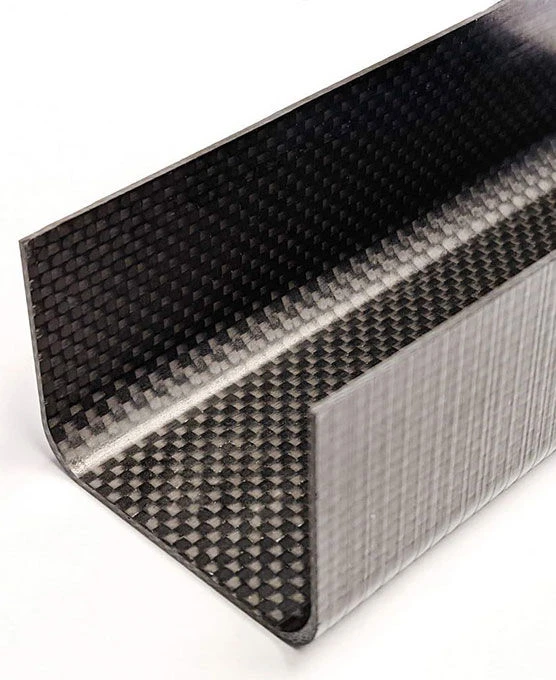

Carbon Fiber C Channel

Carbon fiber C channels offer improved edge access and mounting flexibility, commonly used in modular frames and structural assemblies.

custom carbon fiber channel

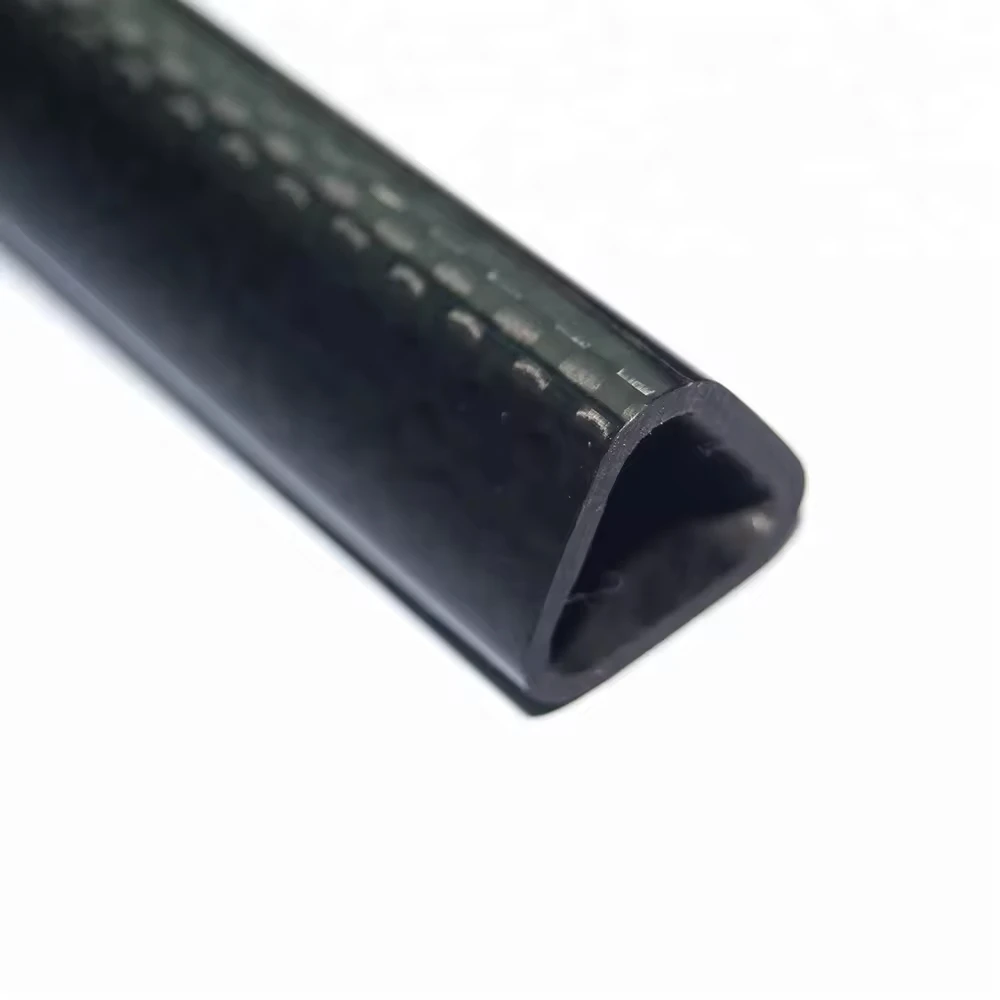

Custom Carbon Fiber Channel

Custom channel profiles can be engineered with tailored dimensions and layup configurations to meet specific structural and assembly requirements.

Typical Specification Range of Carbon Fiber Channels

Carbon fiber channel profiles are supplied based on project requirements rather than fixed catalog sizes.

Parameter Typical Range
Channel Width 10 – 100 mm
Wall Thickness 1 – 6 mm
Length Up to 3000 mm
Fiber Orientation Unidirectional / Multidirectional
Resin System Epoxy (standard)
Surface Finish Matte, Glossy, Woven, Machined

Applications of Carbon Fiber Channels

Carbon fiber channel profiles are commonly selected for applications requiring lightweight structural support, stiffness, and long-term durability.

for structural reinforcement

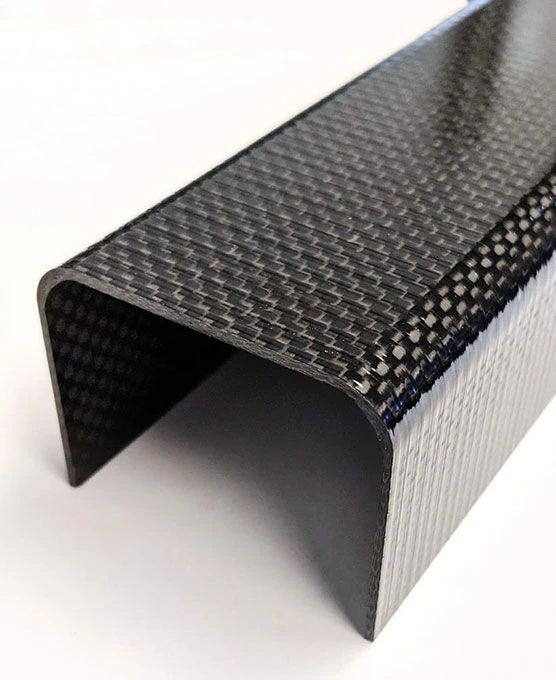

For Structural Reinforcement

Carbon fiber channels are used as reinforcement members in frames and support structures to improve stiffness while minimizing added weight.

for uav & robotics

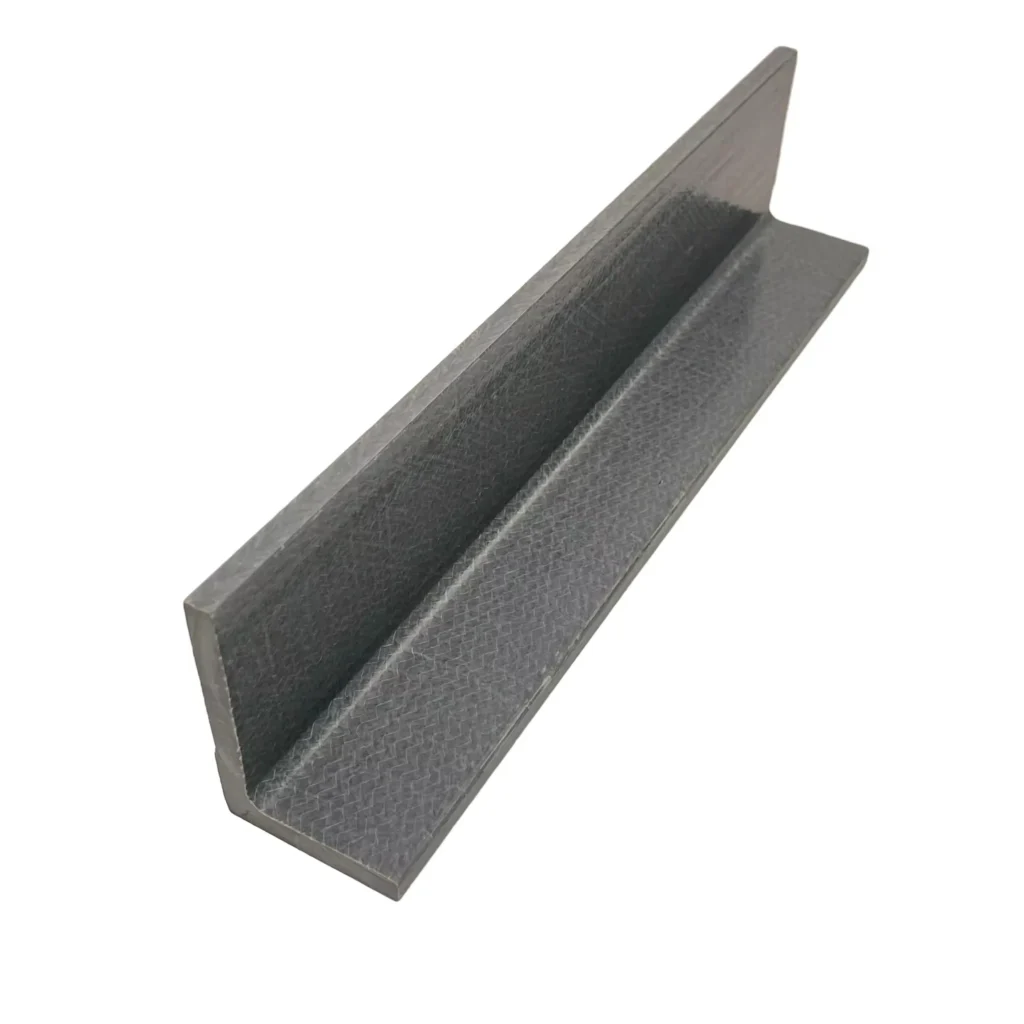

For UAV & Robotics

In UAV platforms and robotic systems, channel profiles provide rigid support for frames, rails, and mounting structures without compromising payload capacity.

for industrial equipment

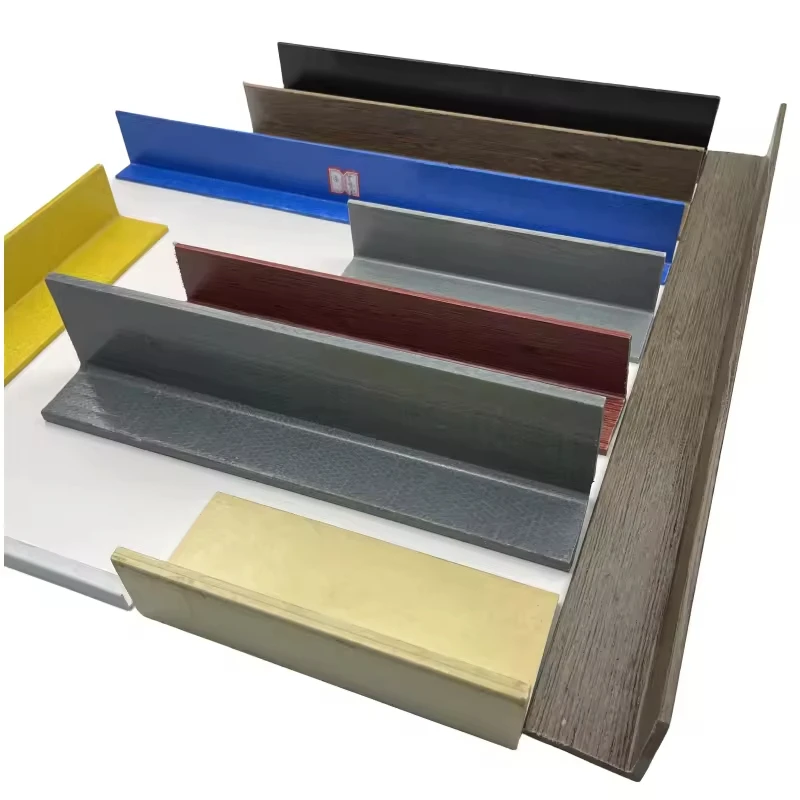

For Industrial Equipment

Carbon fiber channels are applied as lightweight rails, guides, and structural supports where dimensional stability and durability are critical.

for modular assemblies

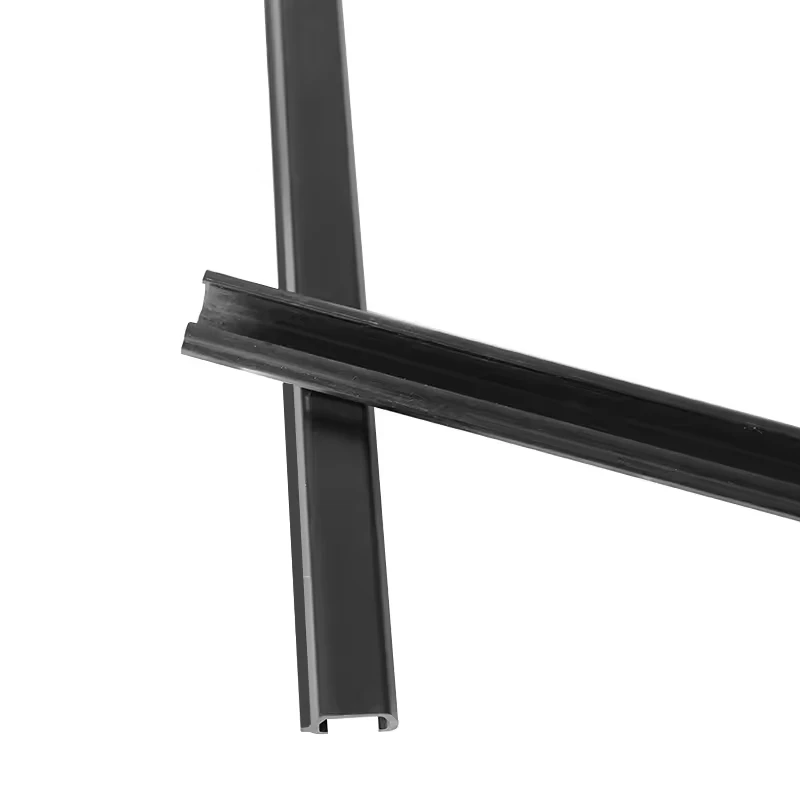

For Modular Assemblies

Channel geometries are commonly used in modular frames and bracket systems, allowing efficient load transfer and flexible assembly.

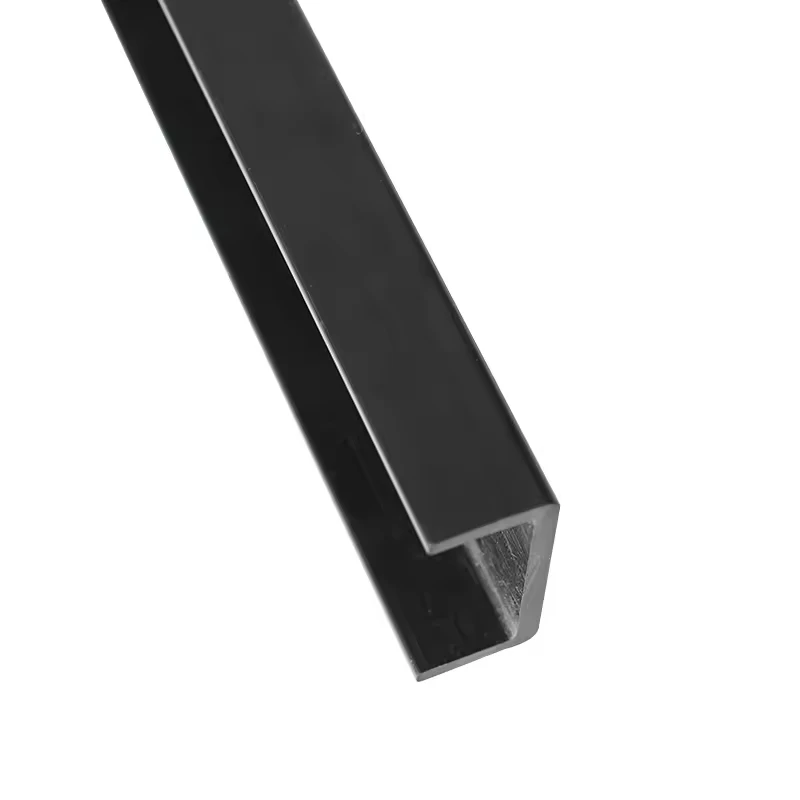

Manufacturing Methods for Carbon Fiber Channels

Manufacturing methods are selected based on channel geometry, structural requirements, and production volume.

manufacturing methods for carbon fiber channels

Pultrusion

Pultrusion is commonly used for carbon fiber channels with constant cross sections.
This process provides stable wall thickness, consistent fiber alignment, and repeatable quality for long, straight structural channels.

Lay-Up & Compression

Lay-up and compression molding methods are applied to channel profiles with variable dimensions, corner radii, or localized reinforcement requirements.
These processes allow greater flexibility in laminate design to match specific load paths and assembly constraints.

CNC Machining

After curing, carbon fiber channels can be CNC machined to achieve precise lengths, slots, and mounting features.
Secondary processing ensures accurate integration into assemblies without compromising structural integrity.

Carbon Fiber Channels vs Aluminum Channels

Carbon fiber channels and aluminum channels are both widely used structural profiles in industrial and engineering applications. While aluminum channels have long been the standard choice, carbon fiber channels are increasingly adopted in projects where weight reduction, stiffness optimization, and long-term structural performance are critical.

Below is a practical comparison to help engineers and buyers select the appropriate channel material based on application requirements.

Strength-to-Weight Ratio

One of the most significant advantages of carbon fiber channels is their exceptional strength-to-weight ratio.

  • Carbon fiber channels deliver high tensile strength and bending stiffness at significantly lower density

  • Aluminum channels provide good absolute strength but require thicker or heavier sections to achieve comparable stiffness

In weight-sensitive structures such as UAV frames, robotic assemblies, and lightweight industrial equipment, carbon fiber channels can typically reduce structural weight by 30–60% compared to aluminum channels while maintaining equivalent or higher stiffness.

Stiffness and Structural Performance

Carbon fiber channels can be engineered with tailored fiber orientations (0°, 90°, ±45°), allowing stiffness and strength to be optimized along specific load paths.
This makes them highly effective in applications with directional bending or torsional loads.

Aluminum channels are isotropic, meaning their mechanical properties are uniform in all directions. While this simplifies structural design, it limits the ability to optimize stiffness without increasing section size or weight.

As a result, carbon fiber channels excel in engineered, load-specific structures, whereas aluminum channels are better suited for general-purpose framing.

Corrosion and Environmental Resistance

Carbon fiber channels are inherently resistant to corrosion, moisture, and most industrial chemicals, making them suitable for outdoor, marine-adjacent, or chemically exposed environments.

Aluminum forms a natural oxide layer that provides basic protection, but it can still suffer corrosion in saltwater, humid, or aggressive chemical conditions without additional surface treatments such as anodizing or coating.

For applications requiring long-term durability with minimal maintenance, carbon fiber channels often provide superior environmental resistance.

Thermal and Electrical Properties

Aluminum channels offer excellent thermal and electrical conductivity, making them suitable for:

  • Heat dissipation structures

  • Electrical grounding components

  • Enclosures requiring thermal management

Carbon fiber channels are electrically conductive but exhibit much lower thermal conductivity than aluminum. They are not typically used where heat transfer is a primary design function.

Machining and Fabrication

Aluminum channels are easy to machine using standard CNC processes, offering fast cutting speeds, low tooling costs, and broad fabrication compatibility.

Carbon fiber channels require specialized machining methods, such as:

  • CNC machining with dust extraction

  • Diamond-coated or composite-specific tools

  • Controlled cutting parameters to prevent delamination

While fabrication complexity is higher, carbon fiber channels enable lightweight, high-precision structural components that are difficult to achieve with metal profiles.

Cost Considerations

  • Aluminum channels generally have lower raw material and machining costs

  • Carbon fiber channels involve higher upfront material and processing costs

However, in performance-driven applications, carbon fiber channels often deliver better lifecycle value through reduced system weight, improved fatigue resistance, and longer service life.

Application-Based Comparison

Application Better Choice Reason
UAV & aerospace structures Carbon Fiber Channels Lightweight & high stiffness
Robotics & automation frames Carbon Fiber Channels Directional strength & vibration resistance
Lightweight industrial equipment Carbon Fiber Channels Structural efficiency
Heat dissipation frames Aluminum Channels Thermal conductivity
Cost-sensitive structural frames Aluminum Channels Lower material and machining cost

Which Material Should You Choose?

Choose carbon fiber channels if your project prioritizes:

  • Lightweight structural design

  • High stiffness and strength efficiency

  • Fatigue resistance and long service life

  • Corrosion resistance in demanding environments

Choose aluminum channels if your project prioritizes:

  • Lower upfront cost

  • Thermal conductivity

  • Simple machining and high-volume production

Frequently asked questions

A carbon fiber channel is a U- or C-shaped composite structural profile used for lightweight reinforcement and load-bearing applications.

They are commonly used in structural frames, UAV and robotics structures, industrial equipment, and lightweight modular assemblies.

In terms of strength-to-weight and stiffness efficiency, carbon fiber channels typically outperform aluminum channels in weight-sensitive structures.

Yes. Dimensions, wall thickness, fiber orientation, and surface finish can be customized based on application and engineering requirements.

They are typically produced using pultrusion for constant cross sections, lay-up or compression molding for complex geometries, followed by CNC machining if required.

Yes. With controlled manufacturing processes, carbon fiber channels can achieve consistent mechanical performance and repeatable quality for OEM and batch production.
